Our Staff Provides Excellent Knowledge for Yamaha Outboard Motors
When you want to the best in Yamaha outboard motors, look to our knowledgeable and friendly staff to guide you. Canobolas Marine Centre and Jayco Orange take pride in our team’s experience to support all your needs. Discover why so many people turn to us when purchasing outboard motors.

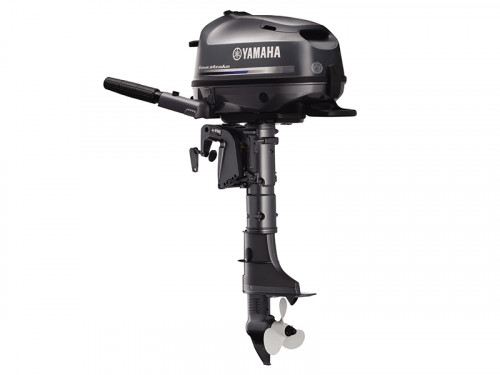

F4SMHA Yamaha 4 Stroke 4hp Short Shaft PORTABLE OUTBOARD
General Features:
8P Alloy prop
1.1L Inbuilt fuel tank
5 position tilt
3 position shallow water drive
Spline prop shaft
Dual fuel line connection for optional remote tank
Specifications
Engine Type
OHV, 1-cylinder
Displacement
139.0 cc
Bore x Stroke
62 x 46 mm
Recommended Max RPM
4000-5000
Lubrication System
Wet sump
Fuel Management
Carb
Ignition
CDI
Starter System
Manual Choke
Alternator Output
12V-6Amp with Rectifier Regulator (optional)
Operation Method
Tiller Handle
Trim & Tilt Method
Manual Tilt
Fuel Tank Capacity
1.1 L
Gear Ratio
2.08:1
Previous model code(s)
F4BMHS
Dimensions
Transom Length
F4SMHA: 432 mm (17 in)
F4LMHA : 508 mm (20 in)
Weight
F4SMHA : 27 kg
F4LMHA : 28 kg

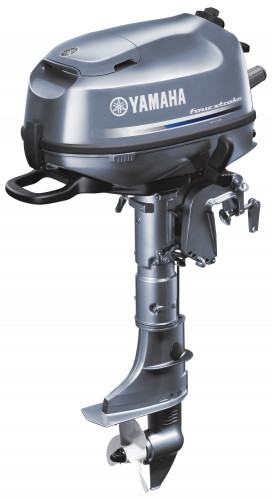

F6SMHA Yamaha 4 Stroke 6hp Short Shaft PORTABLE OUTBOARD
Available in:
F6SMHA - Manual Start, Tiller Handle, Transom height - Standard
F6LMHA - Manual Start, Tiller Handle, Transom height - Long
General Features:
8.25P Alloy prop
1.1L Inbuilt fuel tank
5 position tilt
3 position shallow water drive
Spline prop shaft
Dual fuel line connection for optional remote tank
Specifications
Engine Type
OHV, 1-cylinder
Displacement
139.0 cc
Bore x Stroke
62 x 46 mm
Recommended Max RPM
4500-5500
Lubrication System
Wet sump
Fuel Management
Carb
Ignition
CDI
Starter System
Manual Choke
Alternator Output
12V-6Amp with Rectifier Regulator (optional)
Operation Method
Tiller Handle
Trim & Tilt Method
Manual Tilt
Fuel Tank Capacity
1.1 L
Gear Ratio
2.08:1
Previous model code(s)
F6CMHS
Dimensions
Transom Length
F6SMHA : 440 mm (17.3 in)
F6LMHA : 568 mm (22.4 in)
Weight
F6SMHA : 27 kg
F6LMHA : 28 kg
2096.00AUD 0.00 Feet 2020
Tips Regarding Yamaha Outboards for Sale
Yamaha outboards are one of the most respected products in the industry. They provide unmatched performance, reliability, and excellent customer satisfaction. Learn some key points as you begin your journey for a new outboard.
Ensure that you understand the horsepower you want. A baseline will be the horsepower rating furnished with your boat but add to that how many passengers will travel safely to identify the motor size. If you choose a motor with higher horsepower, you’ll use more fuel, and the price will be higher. Understand the cost/benefit ratio before making your final decision.
Understand where you’ll be using your boat and how far you’ll travel before placing it in the water. Its portability should factor into your decision. Yamaha continues to add more powerful and smaller boats and outboards that fit the boat you choose.
Different outboards have specific requirements. You may need digital equipment, controls, and electrical wiring depending on which outboard you purchase. If you plan, you won’t have costly add-on installations down the road.
Tips for Getting More Value Out of Yamaha Boat Motors
Whether you are racing to win a national championship or content to pull water skiers on a pleasant lake, you want to get the most from your outboard motor. Learn a few tips that will help you glide along the water or churn up the waves with power.
Resist the temptation to modify your engine because it can cause a loss of reliability. More importantly, it will also void the warranty. Set up your boat to use less positive trim since it is more efficient. You’ll use less fuel if you don’t trim out your outboard.
Invest in a jack plate since the best position between the two sets of mounting holes on the transom may lie in between them. The jack plates also adjust the setback, which ensures the prop doesn’t run in aerated water.
The best advice you can find may come from people you know who have experience with the same outboard as you. Also, if you own a Yamaha, Yamaha outboard dealers may have plenty of experienced employees. We pride ourselves on our knowledgeable staff and look forward to answering questions and providing insight.
About Canobolas Marine Centre and Jayco Orange
With over 50 years in the business, we pride ourselves on our knowledge of every product we sell. Our friendly staff will work diligently to answer questions or provide the information to make the best choice possible.
Please contact us so we can serve you. Begin a new journey today in finding the best outboard for your needs.
